Power & Energy Meter
Power & Energy Meter
Multifunction Meter - 3 Line Display
Product: MFM-13-M1
1Ø-2W, 3Ø-3W/4W Selectable
Primary Voltage 100V to 520kVAC
Secondary Voltage 100V to 520V AC
Pulse & RS-485 Modbus Communication

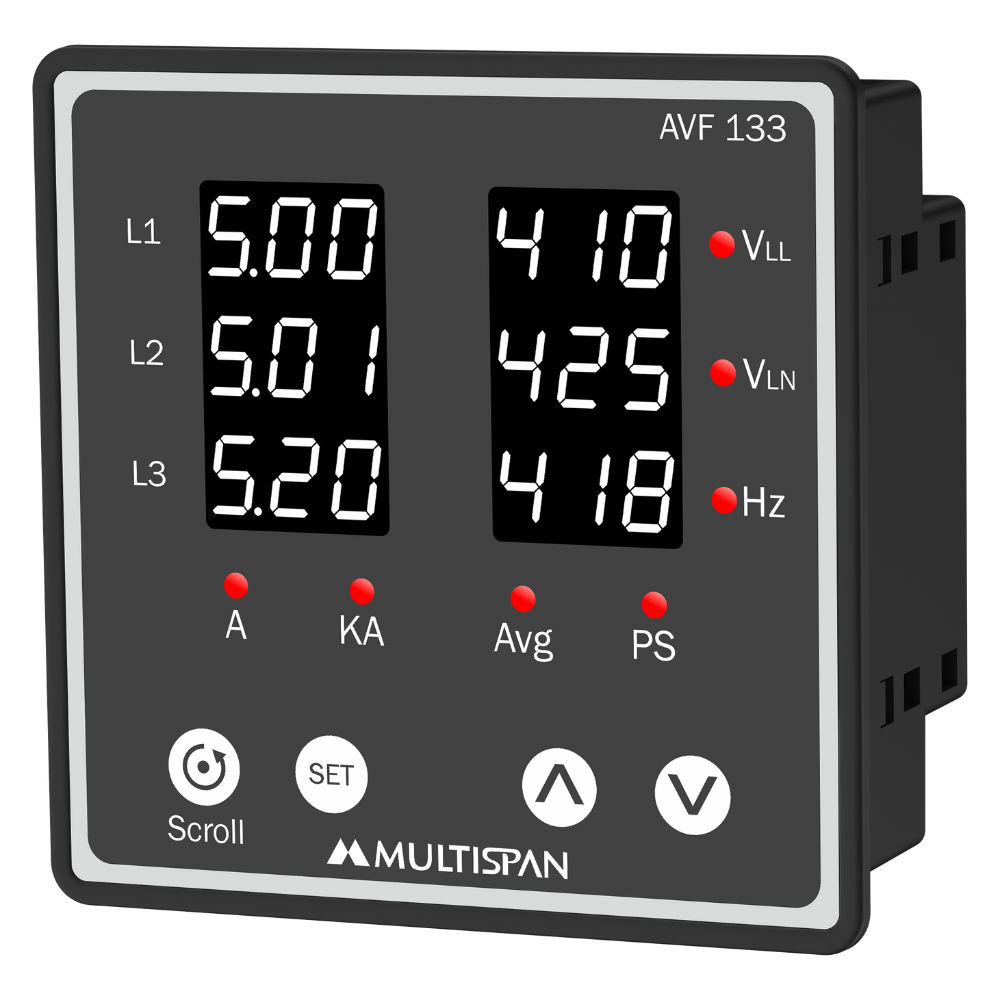

AVF Meter - 3 + 3 Line Display
Product: AVF-133-M1
3Ø-3W/4W, 1Ø-2W Selectable
6-Line Display – 3-Line + 3-Line, 7-Segment LED Display
Size: (H)96mm X (W)96mm X (D)54mm
Supply Voltage: 100-270V AC, 50/60 Hz

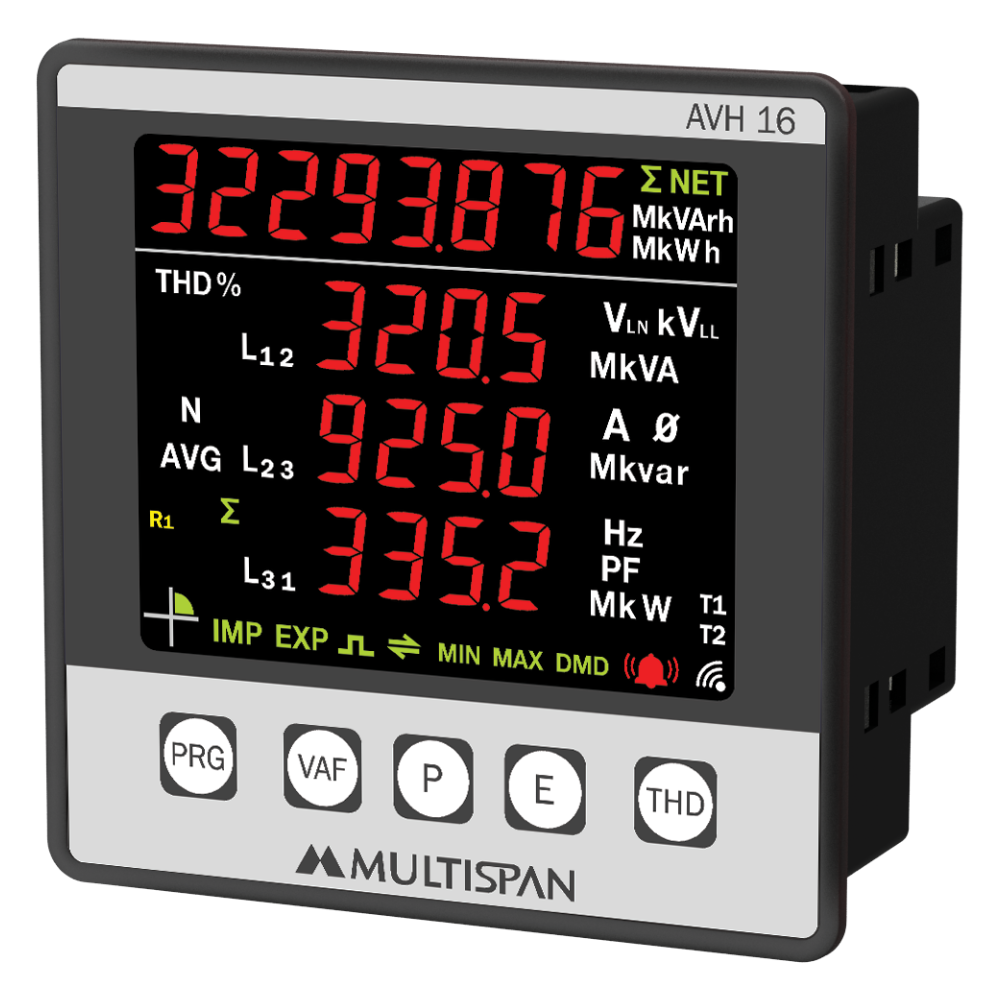

Multifunction Meter - THD & IMP-EXP
Product: AVH-16-M1
1Ø-2W, 3Ø-3W/4W Selectable
Voltage Measurement 100V to 520kVAC, Secondary 100V to 520V AC
THD upto 32th Order for Voltage & Current
Accuracy Class 0.5

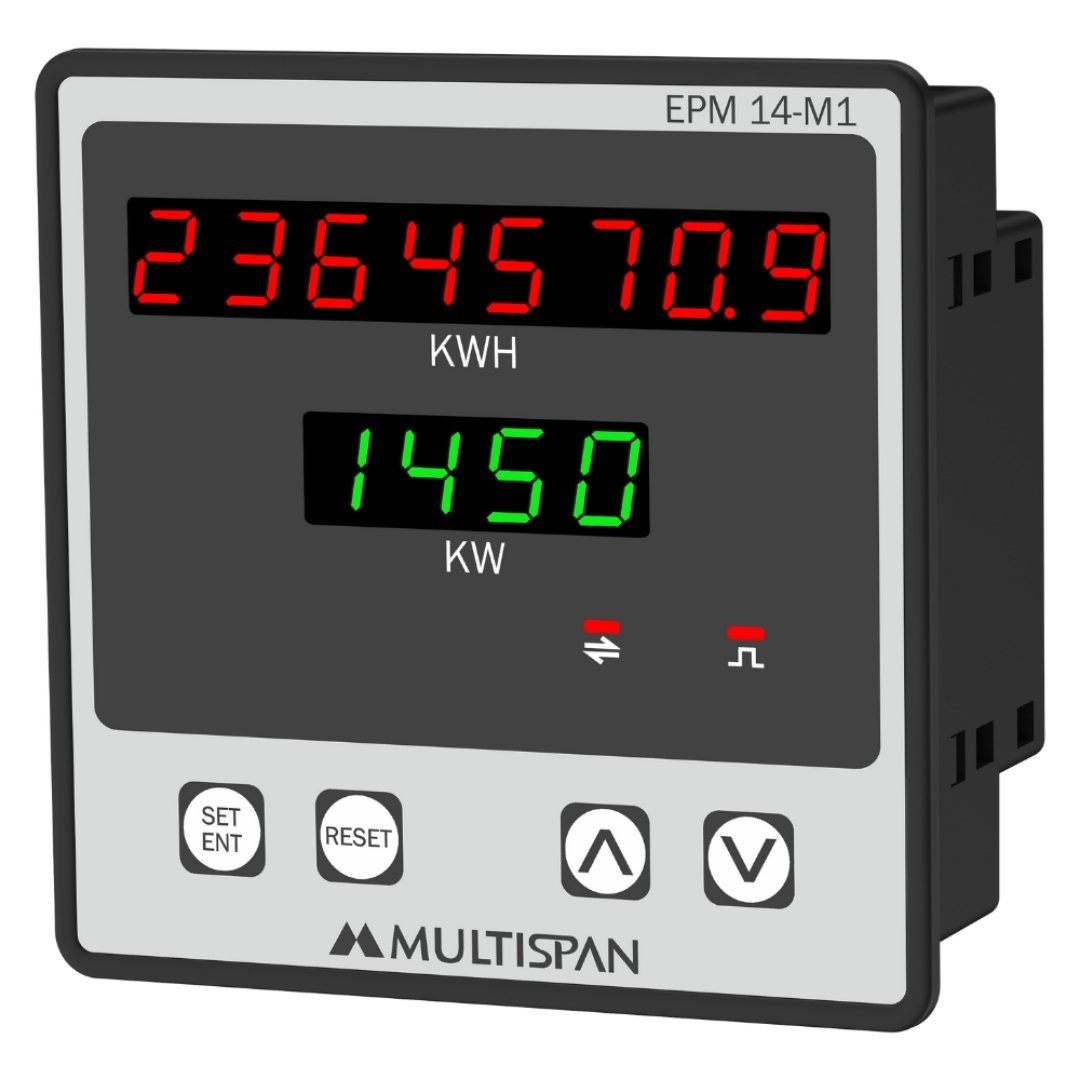

3Ø Energy Meter
Product: EPM-14-M1
Network Selection: 3Ø-4Wire
30 to 300V AC (L-N), 50 to 520V AC (L-L)
Pulse, RS-485 Modbus Communications
Relay Optional Available on KW, KVA Selectable

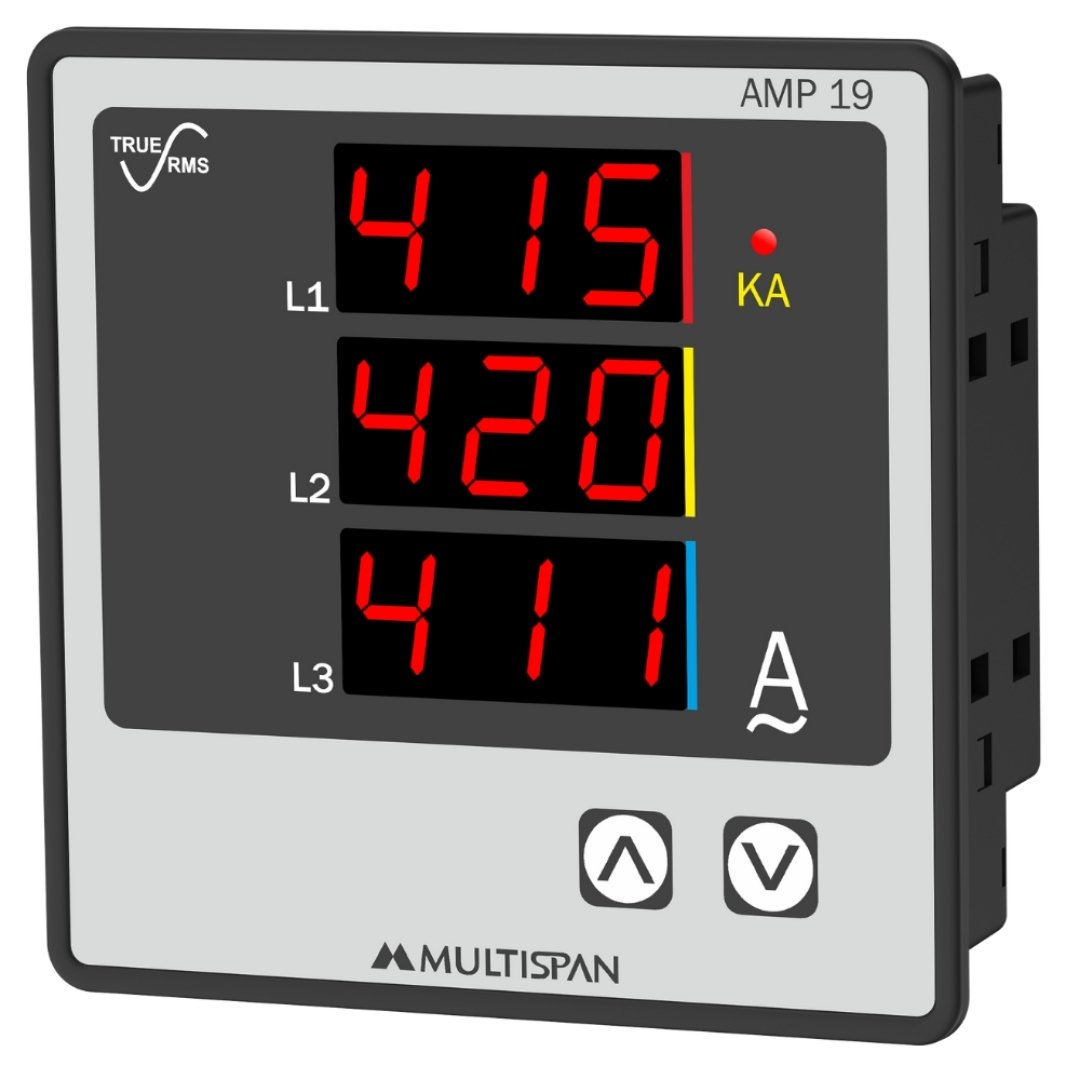

3Ø Ampere Meter
Product: AMP-19 / VOLT-19
Individual Display for Each Phase Current Ampere
CT Primary Selectable up to 9999A
Size: (H)96mm X (W)96mm X(D)43mm
Supply Voltage: 100-270V AC, 50/60 Hz

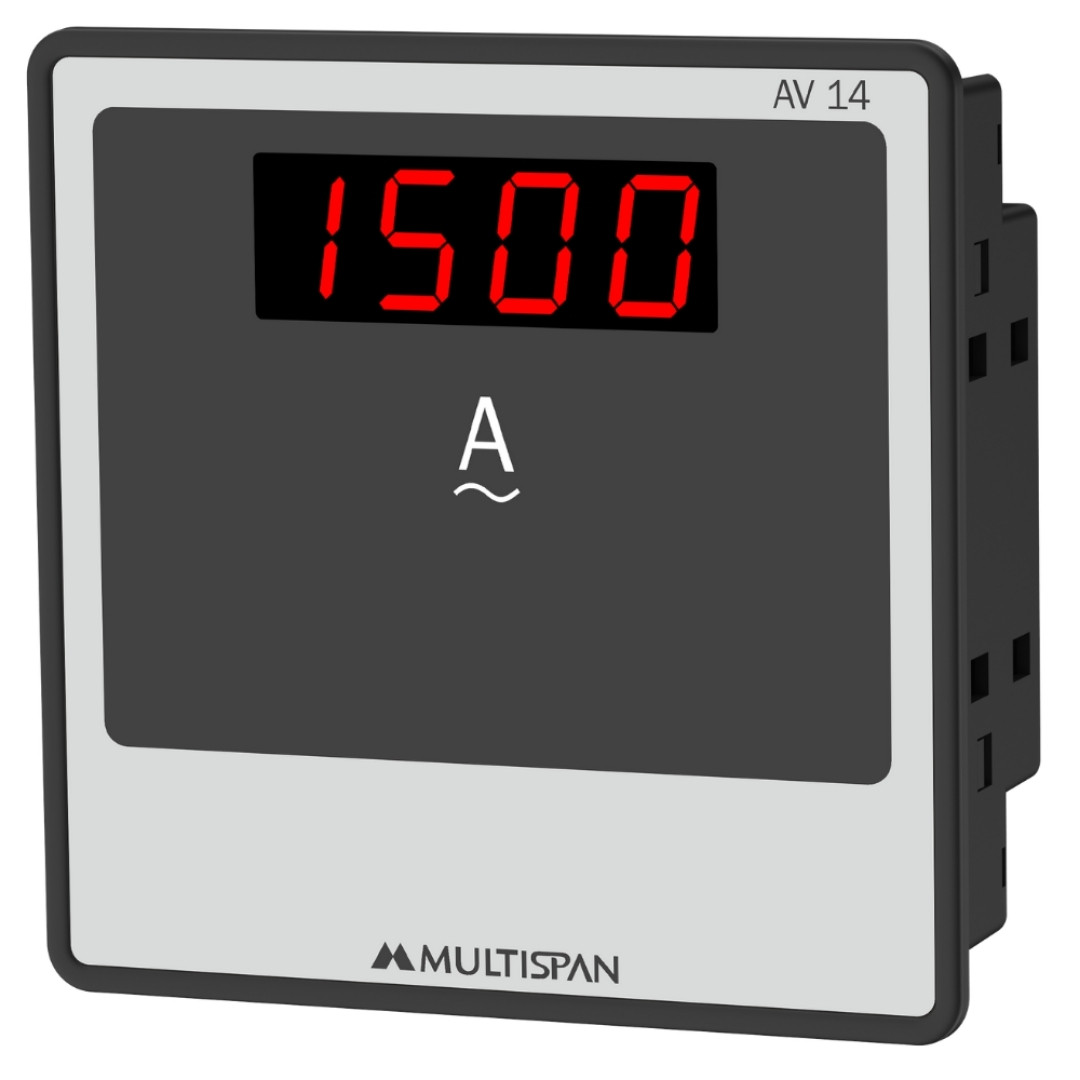

1Ø AC Ampere Meter
Product: AV-14 / AV-11V
7-Segment, 4-Digit LED Display Ampere
CT Selectable Upto 4000/5
Size: (H)96mm X (W)96mm X(D)43mm
Supply Voltage: 230V AC

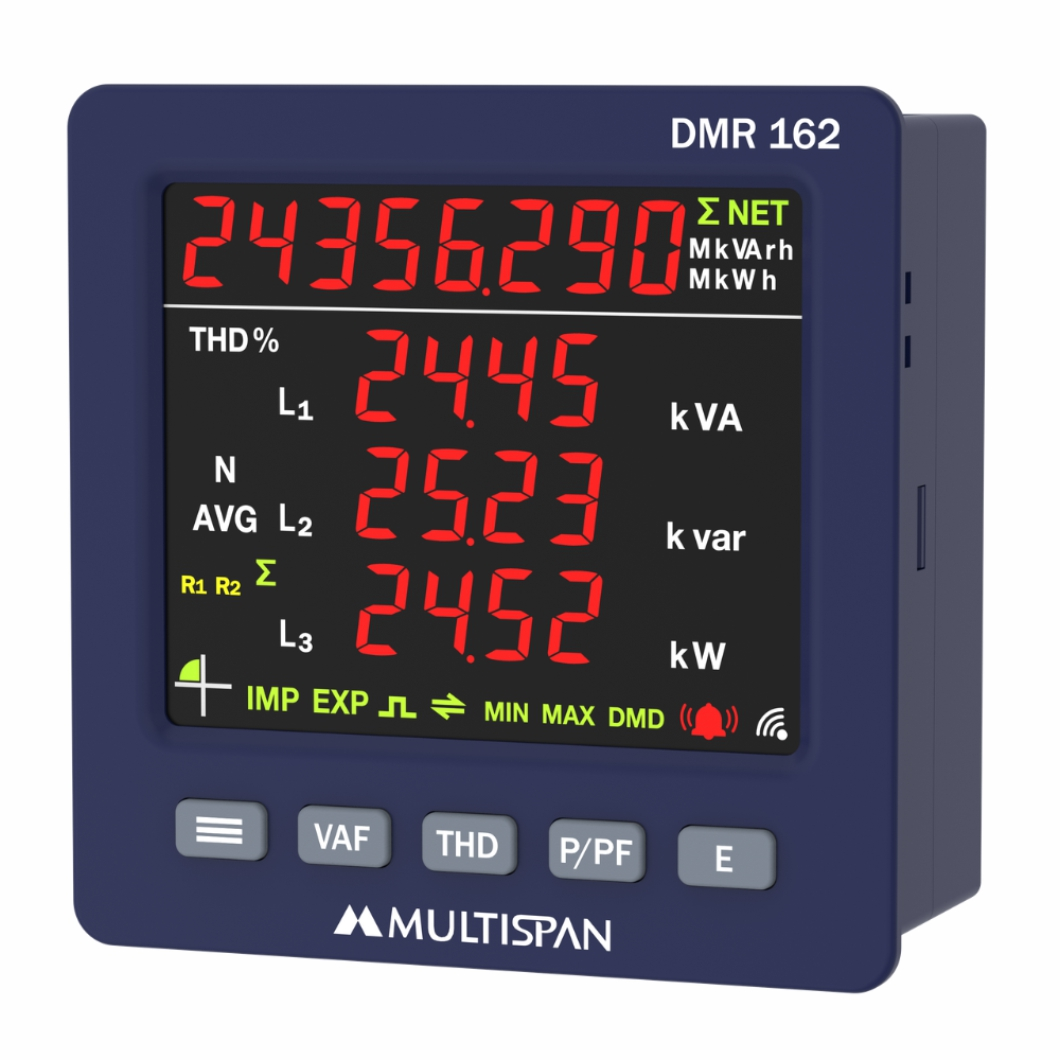

Demand Controller
Product: DMR-162-M1
1Ø-2W, 3Ø-3W/4W Selectable
Voltage Measurement 100V to 520kVAC, Secondary 100V to 520V AC
Pulse & RS-485 Modbus Communication
Accuracy Class 0.5
POWER QUALITY METER
Product: PQM-14-M1
1Ø 2Wire /3Ø 4Wire
Supply voltage : 100 to 300V AC/DC, 50/60Hz
Frequency (Hz) 45.00 - 60.00 Hz
Accuracy Class 0.5
