Window Type CT’S (Bus Bar)

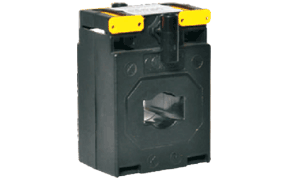

Current Transformer Bar Type
Unbreakable, flame retardant, self-extinguishing Nylon casing bar type CTs of grade UL 94 V2.
Cores are made from high grade CRGO material.
Dual coated copper wire having class of insulation H.
Nickel plated secondary terminals with plus minus screws of 0.5Nm.
Integrated secondary terminal caps.

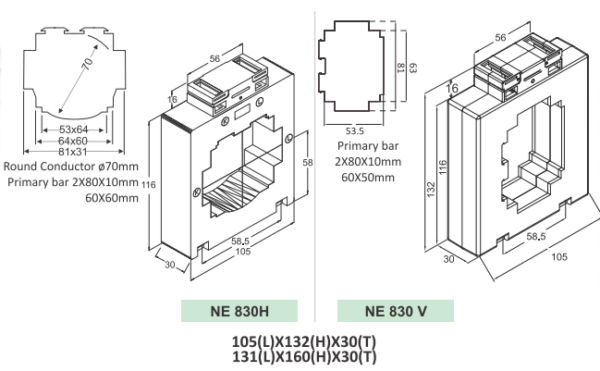

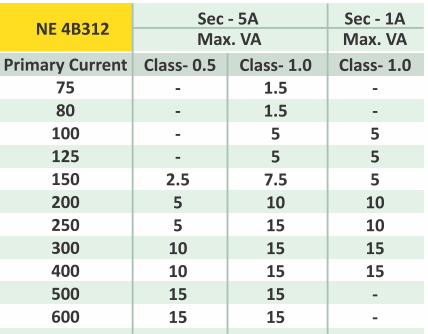

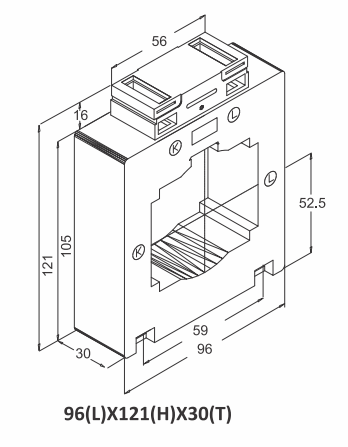

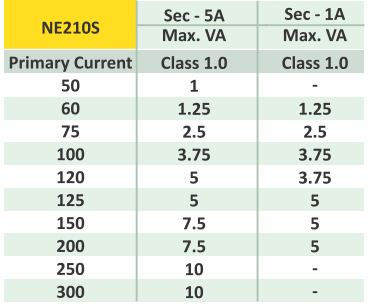

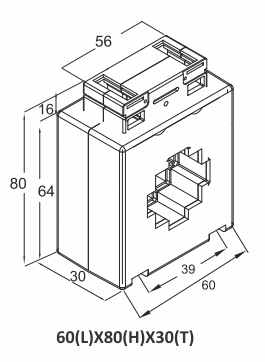

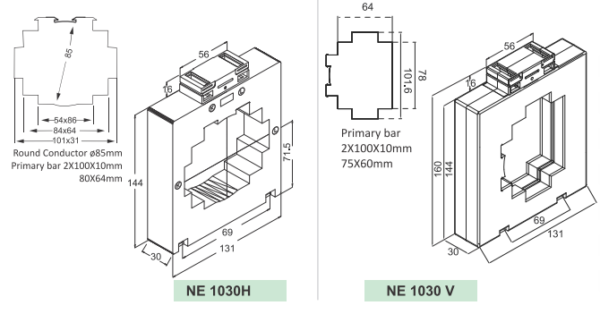

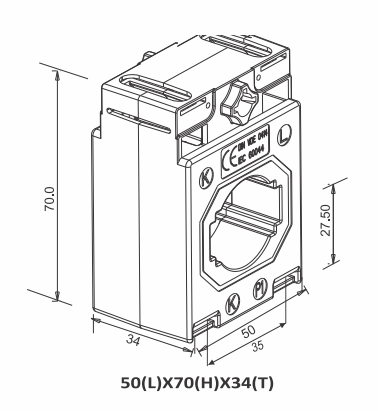

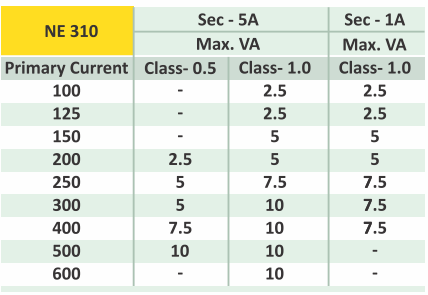

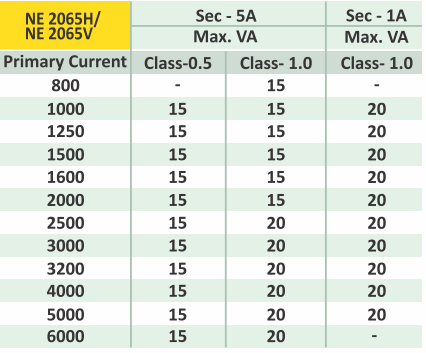

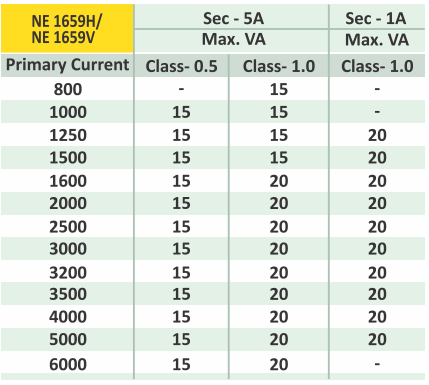

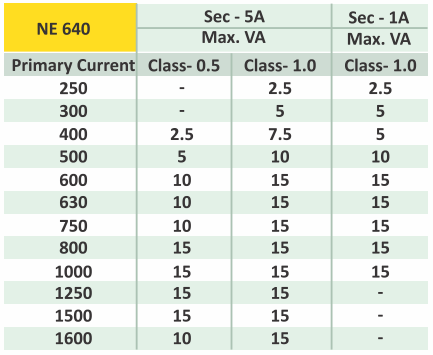

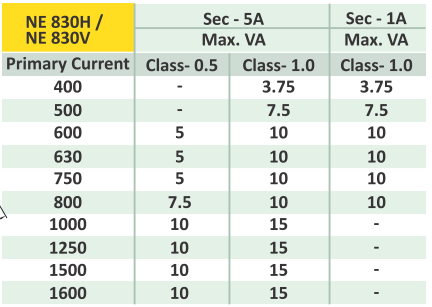

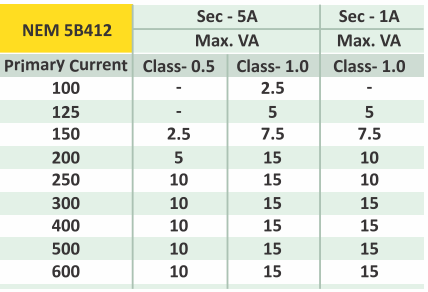

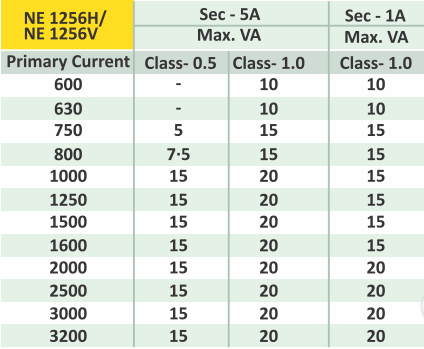

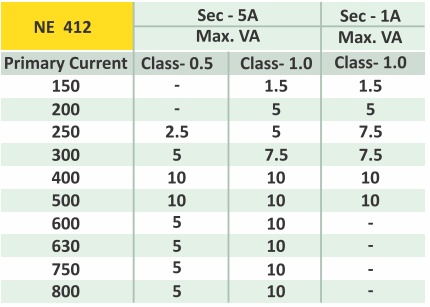

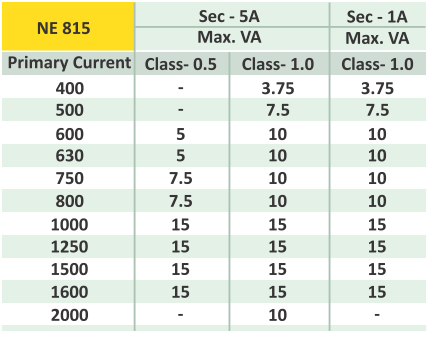

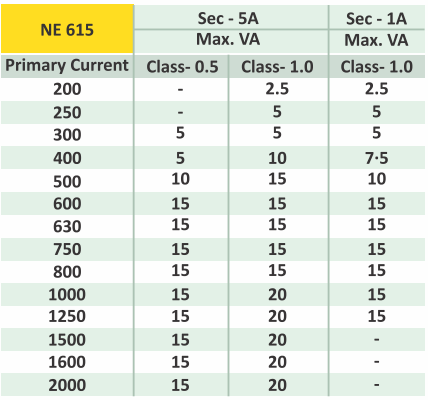

Technical Data
